# 環境

在 Google Kubernetes Engine (GKE) 內建置 Redis 叢集

  • GKE node: g1-small * 2 (version 1.24.8-gke.2000)
  • Redis 7

# 建立 ConfigMap

建立給 redis 節點使用的共用設定檔，名稱為 redis-cluster ，之後建立為 volume 讓每個容器使用

ConfigMap
apiVersion: v1
kind: ConfigMap
metadata:
  name: redis-cluster
data:
  update-node.sh: |
    #!/bin/sh
    REDIS_NODES="/data/nodes.conf"
    sed -i -e "/myself/ s/[0-9]\{1,3\}\.[0-9]\{1,3\}\.[0-9]\{1,3\}\.[0-9]\{1,3\}/${POD_IP}/" ${REDIS_NODES}
    exec "$@"
  redis.conf: |+
    cluster-enabled yes
    cluster-require-full-coverage no
    cluster-node-timeout 15000
    cluster-config-file /data/nodes.conf
    cluster-migration-barrier 1
    appendonly yes
    protected-mode no

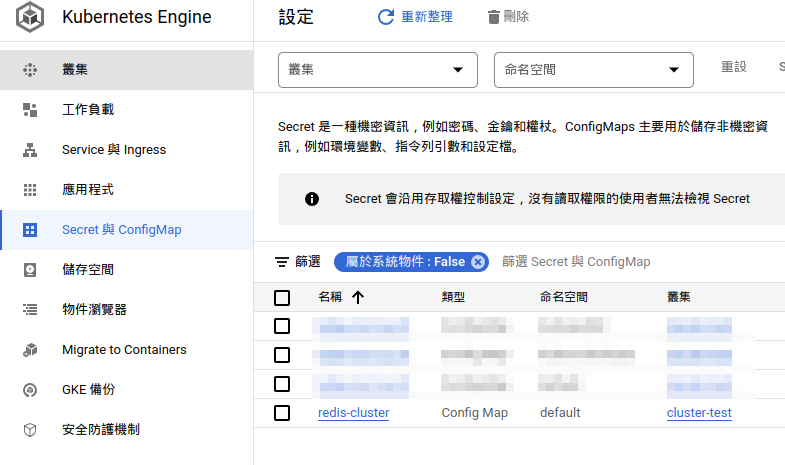

建立成功後可以在 GKE 界面的 Secret與ConfigMap 內看到新增的 redis-cluster

ConfigMap

# 建立 StatefulSet

  • StatefulSet 需要使用 Kubernetes v1.9 或之後的版本才支援
  • .spec.selector.matchLabels 要跟 .spec.template.metadata.labels 相同
  • .spec.replicas 至少要 6 個，redis cluster 至少要 6 個節點；3 個 master, 3 個 slave, 不過還沒查到為什麼。

參考文章在 .spec.selector.template.spec.containers.volumes.defaultMode 是寫 0755 (八進位)，但是我在 Lens 內執行時會出現下面錯誤，所以改成十進位的 493

create Pod redis-cluster-0 in StatefulSet redis-cluster failed error: Pod "redis-cluster-0" is invalid: [spec.volumes[1].configMap.defaultMode: Invalid value: 755: must be a number between 0 and 0777 (octal), both inclusive, spec.containers[0].volumeMounts[0].name: Not found: "conf"]

完整 yaml

StatefulSet
apiVersion: apps/v1
kind: StatefulSet
metadata:
  name: redis-cluster
spec:
  serviceName: redis-cluster
  replicas: 6 # by default is 1
  selector:
    matchLabels:
      app: redis-cluster # has to match .spec.template.metadata.labels
  template:
    metadata:
      labels:
        app: redis-cluster # has to match .spec.selector.matchLabels
    spec:
      containers:
      - name: redis
        image: redis:7
        ports:
        - containerPort: 6379
          name: client
        - containerPort: 16379
          name: gossip
        command: ["/conf/update-node.sh", "redis-server", "/conf/redis.conf"]
        env:
        - name: POD_IP
          valueFrom:
            fieldRef:
              fieldPath: status.podIP
        volumeMounts:
        - name: conf
          mountPath: /conf
          readOnly: false
        - name: data
          mountPath: /data
          readOnly: false
      volumes:
      - name: conf
        configMap:
          name: redis-cluster
          # defaultMode: 0755
          defaultMode: 493
  volumeClaimTemplates:
  - metadata:
      name: data
    spec:
      accessModes: [ "ReadWriteOnce" ]
      resources:
        requests:
          storage: 1Gi

執行完等一下
讓子彈飛一會兒

之後可以在 GKE 的 工作負載 內看到 6 個 Pod 建立完成
Pods

儲存空間 也會產生 6 個 PVC (PersistentVolumeClaim)
PVC

或者使用指令查看

kubectl get pods
$ kubectl get pods
NAME              READY   STATUS    RESTARTS   AGE
redis-cluster-0   1/1     Running   0          8m31s
redis-cluster-1   1/1     Running   0          8m19s
redis-cluster-2   1/1     Running   0          8m7s
redis-cluster-3   1/1     Running   0          7m56s
redis-cluster-4   1/1     Running   0          7m39s
redis-cluster-5   1/1     Running   0          7m28s
kubectl get pv
$ kubectl get pv
NAME                                       CAPACITY   ACCESS MODES   RECLAIM POLICY   STATUS   CLAIM                          STORAGECLASS   REASON   AGE
pvc-01fc7eb6-e99a-4111-8923-53229eb112b4   1Gi        RWO            Delete           Bound    default/data-redis-cluster-1   standard-rwo            21m
pvc-4bc387e4-dd4c-4400-b99a-e75a720e509b   1Gi        RWO            Delete           Bound    default/data-redis-cluster-2   standard-rwo            21m
pvc-af768f00-7889-4fa5-9ef8-cb95337ef38a   1Gi        RWO            Delete           Bound    default/data-redis-cluster-5   standard-rwo            20m
pvc-b6dadea9-b10e-42cb-8ae4-729b186e8b7c   1Gi        RWO            Delete           Bound    default/data-redis-cluster-0   standard-rwo            21m
pvc-c42ebfa4-a726-42f5-b146-18c28de544a4   1Gi        RWO            Delete           Bound    default/data-redis-cluster-4   standard-rwo            20m
pvc-d1d4de96-2f91-4050-9707-8fd802bd7fb4   1Gi        RWO            Delete           Bound    default/data-redis-cluster-3   standard-rwo            21m

# 建立 Service

Service
apiVersion: v1
kind: Service
metadata:
  name: redis-cluster
spec:
  ports:
  - port: 6379
    targetPort: 6379
    name: client
  - port: 16379
    targetPort: 16379
    name: gossip
  selector:
    app: redis-cluster

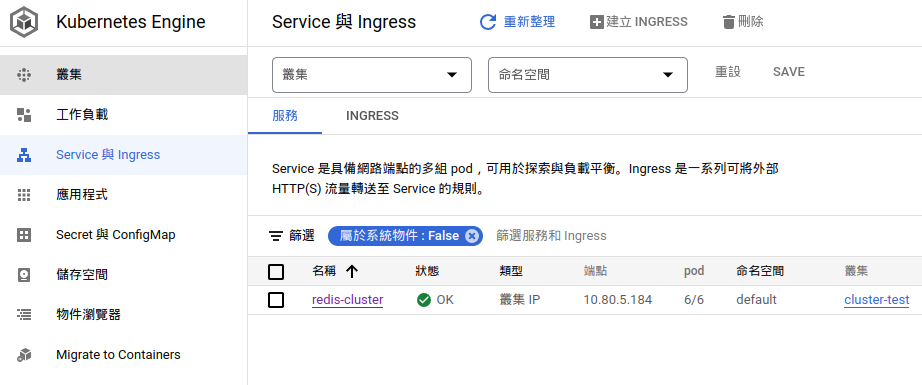

執行完檢查 Service redis-cluster 是否成功建立
service

kubectl get service redis-cluster
$ kubectl get service redis-cluster
NAME            TYPE        CLUSTER-IP    EXTERNAL-IP   PORT(S)              AGE
redis-cluster   ClusterIP   10.80.5.184   <none>        6379/TCP,16379/TCP   2m50s

# 建立 Redis 叢集

參考的文章使用的指令如下

create redis-cluster
kubectl exec -it redis-cluster-0 -- redis-cli --cluster create --cluster-replicas 1 $(kubectl get pods -l app=redis-cluster -o jsonpath='{range.items[*]}{.status.podIP}:6379 ')

實際實行結果會出現如下錯誤

kubectl exec -it redis-cluster-0 -- redis-cli --cluster create --cluster-replicas 1 $(kubectl get pods -l app=redis-cluster -o jsonpath='{range.items[*]}{.status.podIP}:6379 ')

查看原因是 kubectl get pods -l app=redis-cluster -o jsonpath='{range.items[*]}{.status.podIP} 會多一組空的 IP

$ kubectl get pods -l app=redis-cluster -o jsonpath='{range.items[*]}{.status.podIP}:6379 '
10.76.2.30:6379 10.76.1.32:6379 10.76.2.31:6379 10.76.1.33:6379 10.76.2.32:6379 10.76.1.34:6379 :6379

可以使用下面指令查看比較明顯

$ kubectl get pods -l app=redis-cluster -o jsonpath='{range.items[*]}{.status.podIP}:6379{"\n"}'
10.76.2.30:6379
10.76.1.32:6379
10.76.2.31:6379
10.76.1.33:6379
10.76.2.32:6379
10.76.1.34:6379
:6379

修改後指令如下

kubectl exec -it redis-cluster-0 -- redis-cli --cluster create --cluster-replicas 1 $(kubectl get pods -o=jsonpath='{range .items[*]}{.status.podIP}:6379 {end}')

Can I set the above configuration? 輸入 yes ，執行結果可以看到建立了 3 個 redis master 節點，3 個 slave 節點。

執行結果

$ kubectl exec -it redis-cluster-0 -- redis-cli --cluster create --cluster-replicas 1 $(kubectl get pods -o=jsonpath='{range .items[*]}{.status.podIP}:6379 {end}')
>>> Performing hash slots allocation on 6 nodes...
Master[0] -> Slots 0 - 5460
Master[1] -> Slots 5461 - 10922
Master[2] -> Slots 10923 - 16383
Adding replica 10.76.2.32:6379 to 10.76.2.30:6379
Adding replica 10.76.1.34:6379 to 10.76.1.32:6379
Adding replica 10.76.1.33:6379 to 10.76.2.31:6379
M: 05ecf3912ed0a5517ab74fd17f81d02a3314a833 10.76.2.30:6379
slots:[0-5460] (5461 slots) master
M: 9da23852cfd0a7489c2f53ec743363e48dea378b 10.76.1.32:6379
slots:[5461-10922] (5462 slots) master
M: 379127b6974b6acc59e5fb194361749e682bdc97 10.76.2.31:6379
slots:[10923-16383] (5461 slots) master
S: 5105cdd3a6637e3844316c557f81c68b231703e7 10.76.1.33:6379
replicates 379127b6974b6acc59e5fb194361749e682bdc97
S: dde0a9ef27e044cd124814529305732c9ab0d9dd 10.76.2.32:6379
replicates 05ecf3912ed0a5517ab74fd17f81d02a3314a833
S: 8a89a45f3161b606b13f1ede95fec240de2bcf9d 10.76.1.34:6379
replicates 9da23852cfd0a7489c2f53ec743363e48dea378b
Can I set the above configuration? (type 'yes' to accept): yes
>>> Nodes configuration updated
>>> Assign a different config epoch to each node
>>> Sending CLUSTER MEET messages to join the cluster
Waiting for the cluster to join

>>> Performing Cluster Check (using node 10.76.2.30:6379)
M: 05ecf3912ed0a5517ab74fd17f81d02a3314a833 10.76.2.30:6379
slots:[0-5460] (5461 slots) master
1 additional replica(s)
S: dde0a9ef27e044cd124814529305732c9ab0d9dd 10.76.2.32:6379
slots: (0 slots) slave
replicates 05ecf3912ed0a5517ab74fd17f81d02a3314a833
S: 5105cdd3a6637e3844316c557f81c68b231703e7 10.76.1.33:6379
slots: (0 slots) slave
replicates 379127b6974b6acc59e5fb194361749e682bdc97
M: 379127b6974b6acc59e5fb194361749e682bdc97 10.76.2.31:6379
slots:[10923-16383] (5461 slots) master
1 additional replica(s)
M: 9da23852cfd0a7489c2f53ec743363e48dea378b 10.76.1.32:6379
slots:[5461-10922] (5462 slots) master
1 additional replica(s)
S: 8a89a45f3161b606b13f1ede95fec240de2bcf9d 10.76.1.34:6379
slots: (0 slots) slave
replicates 9da23852cfd0a7489c2f53ec743363e48dea378b
[OK] All nodes agree about slots configuration.
>>> Check for open slots...
>>> Check slots coverage...
[OK] All 16384 slots covered.

# 驗證 Redis 叢集

kubectl exec -it redis-cluster-0 -- redis-cli cluster info
執行結果

$ kubectl exec -it redis-cluster-0 -- redis-cli cluster info
cluster_state:ok
cluster_slots_assigned:16384
cluster_slots_ok:16384
cluster_slots_pfail:0
cluster_slots_fail:0
cluster_known_nodes:6
cluster_size:3
cluster_current_epoch:6
cluster_my_epoch:1
cluster_stats_messages_ping_sent:273
cluster_stats_messages_pong_sent:278
cluster_stats_messages_sent:551
cluster_stats_messages_ping_received:273
cluster_stats_messages_pong_received:273
cluster_stats_messages_meet_received:5
cluster_stats_messages_received:551
total_cluster_links_buffer_limit_exceeded:0

for x in $(seq 0 5); do echo "redis-cluster-$x"; kubectl exec redis-cluster-$x -- redis-cli role; echo; done
執行結果

$ for x in (seq05);doecho"redis−cluster−(seq 0 5); do echo "redis-cluster-x"; kubectl exec redis-cluster-$x -- redis-cli role; echo; done
redis-cluster-0
master
504
10.76.2.32
6379
504

redis-cluster-1
master
504
10.76.1.34
6379
504

redis-cluster-2
master
490
10.76.1.33
6379
490

redis-cluster-3
slave
10.76.2.31
6379
connected
490

redis-cluster-4
slave
10.76.2.30
6379
connected
504

redis-cluster-5
slave
10.76.1.32
6379
connected
504

# YAML 檔案

GitHub: 8loser/redis-sts

# 參考

Deploying Redis Cluster on Top of Kubernetes February 22, 2019 | By: Rancher Admin
