# 環境

在 docker compose 中，使用 nginx 導向 websocket 到 container 內

# 錯誤訊息

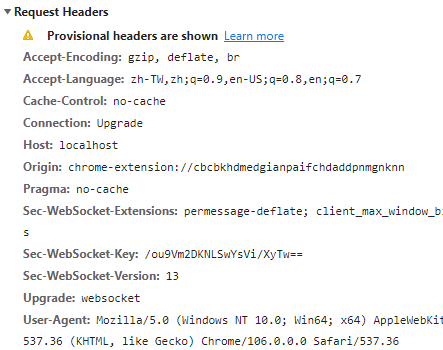

websocket 連接不上，查看 request headers 顯示 Provisional headers are shown

provisional headers are shown

# Solution

搜尋解決方法是在 nginx.conf 內加上

	proxy_set_header Upgrade $http_upgrade;
	proxy_set_header Connection "upgrade";

# 範例

範例

	location /backend/ {
	proxy_pass http://backend/;
	proxy_set_header Host $host;
	proxy_set_header X-Real-IP $remote_addr;
	proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
	proxy_set_header X-Custom-Referrer smc_identity_layer;
	# websocket 要加下面兩個
	proxy_set_header Upgrade $http_upgrade;
	proxy_set_header Connection "upgrade";
	}

# 驗證

比較有修正前跟修正後，後端實際收到的 request header

# 修正前 request headers

修正前

	Headers({'host': 'localhost',
	'x-real-ip': '192.168.224.1',
	'x-forwarded-for': '192.168.224.1',
	'x-custom-referrer': 'smc_identity_layer',
	'connection': 'close',
	'pragma': 'no-cache',
	'cache-control': 'no-cache',
	'user-agent': 'Mozilla/5.0 (Windows NT 10.0; Win64; x64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/106.0.0.0 Safari/537.36',
	'origin': 'chrome-extension://cbcbkhdmedgianpaifchdaddpnmgnknn',
	'sec-websocket-version': '13',
	'accept-encoding': 'gzip, deflate, br',
	'accept-language': 'zh-TW,zh;q=0.9,en-US;q=0.8,en;q=0.7',
	'sec-websocket-key': 'iBVj1v1X8xkD324lsXZSUA==',
	'sec-websocket-extensions': 'permessage-deflate; client_max_window_bits'})

# 修正後 request headers

修正後

	Headers({'host': 'localhost',
	'x-real-ip': '192.168.208.1',
	'x-forwarded-for': '192.168.208.1',
	'x-custom-referrer': 'smc_identity_layer',
	'upgrade': 'websocket',
	'connection': 'upgrade',
	'pragma': 'no-cache',
	'cache-control': 'no-cache',
	'user-agent': 'Mozilla/5.0 (Windows NT 10.0; Win64; x64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/106.0.0.0 Safari/537.36',
	'origin': 'chrome-extension://cbcbkhdmedgianpaifchdaddpnmgnknn',
	'sec-websocket-version': '13',
	'accept-encoding': 'gzip, deflate, br',
	'accept-language': 'zh-TW,zh;q=0.9,en-US;q=0.8,en;q=0.7',
	'sec-websocket-key': 'j2NwT86WmJt6rIyatTa5rw==',
	'sec-websocket-extensions': 'permessage-deflate; client_max_window_bits'})
